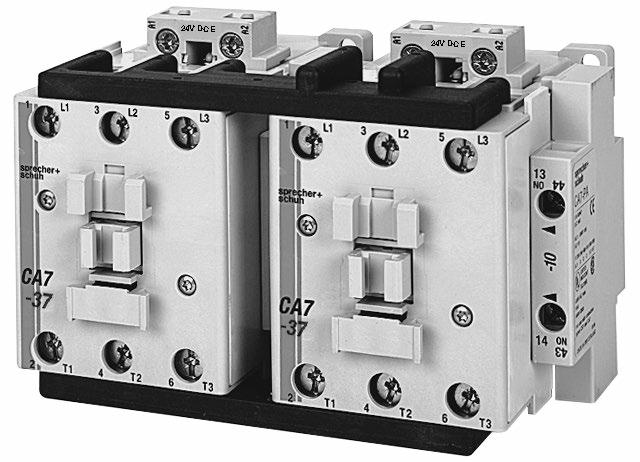

Sprecher & Schuh CAU7 Series Three Pole Contactors with Reversing AC Coil

Catalog Files:

Sprecher Schuh CA7 Series Contactor Catalog.pdf

Auxiliary Contacts per Contactor:

AC Coil Code:

Voltage Range at 50 Hz:

Voltage Range at 60 Hz:

AC-3 Rating:

AC-1 Rating:

Part #	Auxiliary Contacts per Contactor	AC Coil Code	Voltage Range at 50 Hz	Voltage Range at 60 Hz	AC-3 Rating	AC-1 Rating
CAU7-9-22-24Z	1-NO/1-NC	24Z	24V	24V	9	32
CAU7-9-22-120	1-NO/1-NC	120	110V	120V	9	32
CAU7-9-22-208	1-NO/1-NC	208	~	208V	9	32
CAU7-9-22-220W	1-NO/1-NC	220W	200V-220V	208V-240V	9	32
CAU7-9-22-240	1-NO/1-NC	240	220V	240V	9	32
CAU7-9-22-277	1-NO/1-NC	277	240V	277V	9	32
CAU7-9-22-380	1-NO/1-NC	380	380V-400V	440V	9	32
CAU7-9-22-480	1-NO/1-NC	480	440V	480V	9	32
CAU7-9-22-600	1-NO/1-NC	600	550V	600V	9	32
CAU7-12-22-24Z	1-NO/1-NC	24Z	24V	24V	12	32
CAU7-12-22-120	1-NO/1-NC	120	110V	120V	12	32
CAU7-12-22-208	1-NO/1-NC	208	~	208V	12	32
CAU7-12-22-220W	1-NO/1-NC	220W	200V-220V	208V-240V	12	32
CAU7-12-22-240	1-NO/1-NC	240	220V	240V	12	32
CAU7-12-22-277	1-NO/1-NC	277	240V	277V	12	32
CAU7-12-22-380	1-NO/1-NC	380	380V-400V	440V	12	32
CAU7-12-22-480	1-NO/1-NC	480	440V	480V	12	32
CAU7-12-22-600	1-NO/1-NC	600	550V	600V	12	32
CAU7-16-22-24Z	1-NO/1-NC	24Z	24V	24V	16	32
CAU7-16-22-120	1-NO/1-NC	120	110V	120V	16	32

Displaying 1 to 20 (of 180 products)

Result Pages: 1 2 3 4 5 ... [Next >>]
