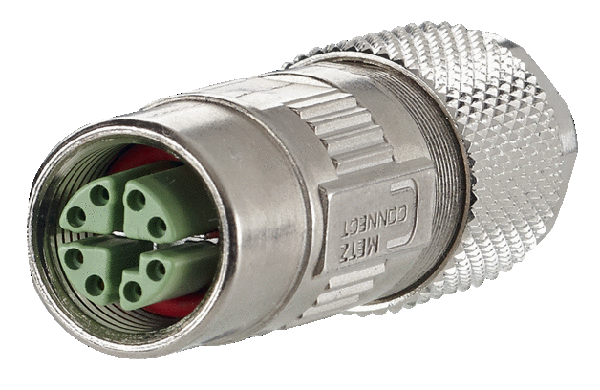

M12 Jack X-Code IP67, Field Assembly
-
8-pole M12 jack for field assembly Cat.6A per IEC/PAS 61076-2-109
-
Suitable for 10 GBit as per IEEE 802.3an
-
AWG 26/1-22/1, AWG 26/7-22/7 can be connected
-
Solid copper wire diameter 0.4 to 0.64 mm
-
Stranded copper wire diameter 0.48 to 0.76 mm
-
Wire diameter with isolation up to 1.6 mm
-
Overall cable diameter from 5.0 to 9.7 mm
-
Jack consists of only two parts
-
Easy assembly without special tools
-
Industry-compatible zinc die-cast housing
-
Suitable for applications in the railway industry
