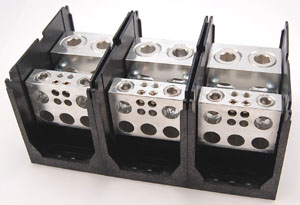

Marathon 135 Series Power Distribution Blocks, UL Listed

Marathon 135 Series Power Distribution Blocks, Thermoplastic Insulator Base, Aluminum Wire Connectors , Line Side Available in 1 or 2 Openings, Load Side Available in 1, 2, 6, 8, 9, 10, 15, & 16 Openings, UL Listed

Reset
Part #
Number of Positions & Length
Line Side Openings Per Position & Wire Range
Load Side Openings Per Position & Wire Range
Accessories

1351701  1 Position, 3.48"
1 Opening, 750 kcmil - 1/0 AWG
1 Opening, 750 kcmil - 1/0 AWG
None
 Add to Quote Button
1351701-CH  1 Position, 3.48"
1 Opening, 750 kcmil - 1/0 AWG
1 Opening, 750 kcmil - 1/0 AWG
Safety Hinged Cover
 Add to Quote Button
1351702  1 Position, 3.48"
2 Openings, 750 kcmil -1/0 AWG
2 Openings, 750 kcmil - 1/0 AWG
None
 Add to Quote Button
1351702-CH  1 Position, 3.48"
2 Openings, 750 kcmil -1/0 AWG
2 Openings, 750 kcmil - 1/0 AWG
Safety Hinged Cover
 Add to Quote Button
1351703  1 Position, 3.48"
2 Openings, 750 kcmil -1/0 AWG
6 Openings, 250 kcmil - 6 AWG
None
 Add to Quote Button
1351703-CH  1 Position, 3.48"
2 Openings, 750 kcmil -1/0 AWG
6 Openings, 250 kcmil - 6 AWG
Safety Hinged Cover
 Add to Quote Button
1351704  1 Position, 3.48"
2 Openings, 750 kcmil -1/0 AWG
10 Openings, 2/0 - 14 AWG
None
 Add to Quote Button
1351704-CH  1 Position, 3.48"
2 Openings, 750 kcmil -1/0 AWG
10 Openings, 2/0 - 14 AWG
Safety Hinged Cover
 Add to Quote Button
1351705  1 Position, 3.48"
2 Openings, 750 kcmil -1/0 AWG
15 Openings Total, 12 Openings, 2-14 AWG & 3 Openings, 250 kcmil - 6 AWG
None
 Add to Quote Button
1351705-CH  1 Position, 3.48"
2 Openings, 750 kcmil -1/0 AWG
15 Openings Total, 12 Openings, 2-14 AWG & 3 Openings, 250 kcmil - 6 AWG
Safety Hinged Cover
 Add to Quote Button
1351706  1 Position, 3.48"
2 Openings, 750 kcmil -1/0 AWG
9 Openings Total, 4 Openings, 2 - 14 AWG, & 5 Openings, 250 kcmil - 6 AWG
None
 Add to Quote Button
1351706-CH  1 Position, 3.48"
2 Openings, 750 kcmil -1/0 AWG
9 Openings Total, 4 Openings, 2 - 14 AWG, & 5 Openings, 250 kcmil - 6 AWG
Safety Hinged Cover
 Add to Quote Button
1351707  1 Position, 3.48"
2 Openings, 750 kcmil -1/0 AWG
16 Openings Total, 12 Openings, 2 - 14 AWG, & 4 Openings, 3/0 - 6 AWG
None
 Add to Quote Button
1351707-CH  1 Position, 3.48"
2 Openings, 750 kcmil -1/0 AWG
16 Openings Total, 12 Openings, 2 - 14 AWG, & 4 Openings, 3/0 - 6 AWG
Safety Hinged Cover
 Add to Quote Button
1351708  1 Position, 3.48"
2 Openings, 750 kcmil -1/0 AWG
8 Openings, 3/0 - 6 AWG
None
 Add to Quote Button
1351708-CH  1 Position, 3.48"
2 Openings, 750 kcmil -1/0 AWG
8 Openings, 3/0 - 6 AWG
Safety Hinged Cover
 Add to Quote Button
1352701  2 Positions, 6.79"
1 Opening, 750 kcmil - 1/0 AWG
1 Opening, 750 kcmil - 1/0 AWG
None
 Add to Quote Button
1352701-CH  2 Positions, 6.79"
1 Opening, 750 kcmil - 1/0 AWG
1 Opening, 750 kcmil - 1/0 AWG
Safety Hinged Cover
 Add to Quote Button
1352702  2 Positions, 6.79"
2 Openings, 750 kcmil -1/0 AWG
2 Openings, 750 kcmil - 1/0 AWG
None
 Add to Quote Button
1352702-CH  2 Positions, 6.79"
2 Openings, 750 kcmil -1/0 AWG
2 Openings, 750 kcmil - 1/0 AWG
Safety Hinged Cover
 Add to Quote Button
Displaying 1 to 20 (of 48 products) Result Pages:  1  2  3  [Next >>]
